3M Scotch-Weld DP100 Clear Epoxy Adhesive Overview

3M DP100 Clear is a two-part, rigid epoxy adhesive designed for fast curing and high-performance bonding across a variety of substrates. With its clear, low-viscosity formulation, it creates seamless bond lines, making it ideal for transparent bonding applications. 3M Scotch Weld DP100 offers a quick 5-minute work life and cures to a rigid state, providing strong, long-lasting bonds for materials like wood, metal, glass, stone, ceramics, and various plastics.

3M DP100 1:1 Clear Epoxy performs exceptionally well in industries requiring secure, permanent bonding. It works effectively on a wide range of substrates with high shear strength for optimal load-holding capabilities, making it ideal for industrial and consumer applications.

All 3M DP100 Epoxy Adhesives

• 3M Scotch-Weld DP100 Clear Epoxy
• 3M Scotch-Weld DP100 Plus Clear Epoxy
• 3M Scotch-Weld DP100NS Clear Epoxy
• 3M Scotch-Weld DP100FR Cream Epoxy

3M DP100 Epoxy Features and Benefits

• Fast Cure: Reaches handling strength in 15-20 minutes, with full cure in 48 hours.

• Strong, Rigid Bonds: Cures to a rigid state for high static load holding.

• Wide Substrate Compatibility: Bonds well with wood, metal, glass, stone, ceramics, and plastics.

• Low Viscosity: Clear formulation ensures seamless bond lines.

• 5-Minute Work Life: Allows for quick adjustments and repositioning.

• Certified Safety: 3M DP100 Clear Meets UL 94 HB standards for flammability.

Specifications

• Series: 3M Scotch-Weld DP100

• Type: Epoxy Adhesive

• Application: Structural Bonding

• Substrates: Wood, Metal, Glass, Stone, and Various Plastics

• Color: Clear

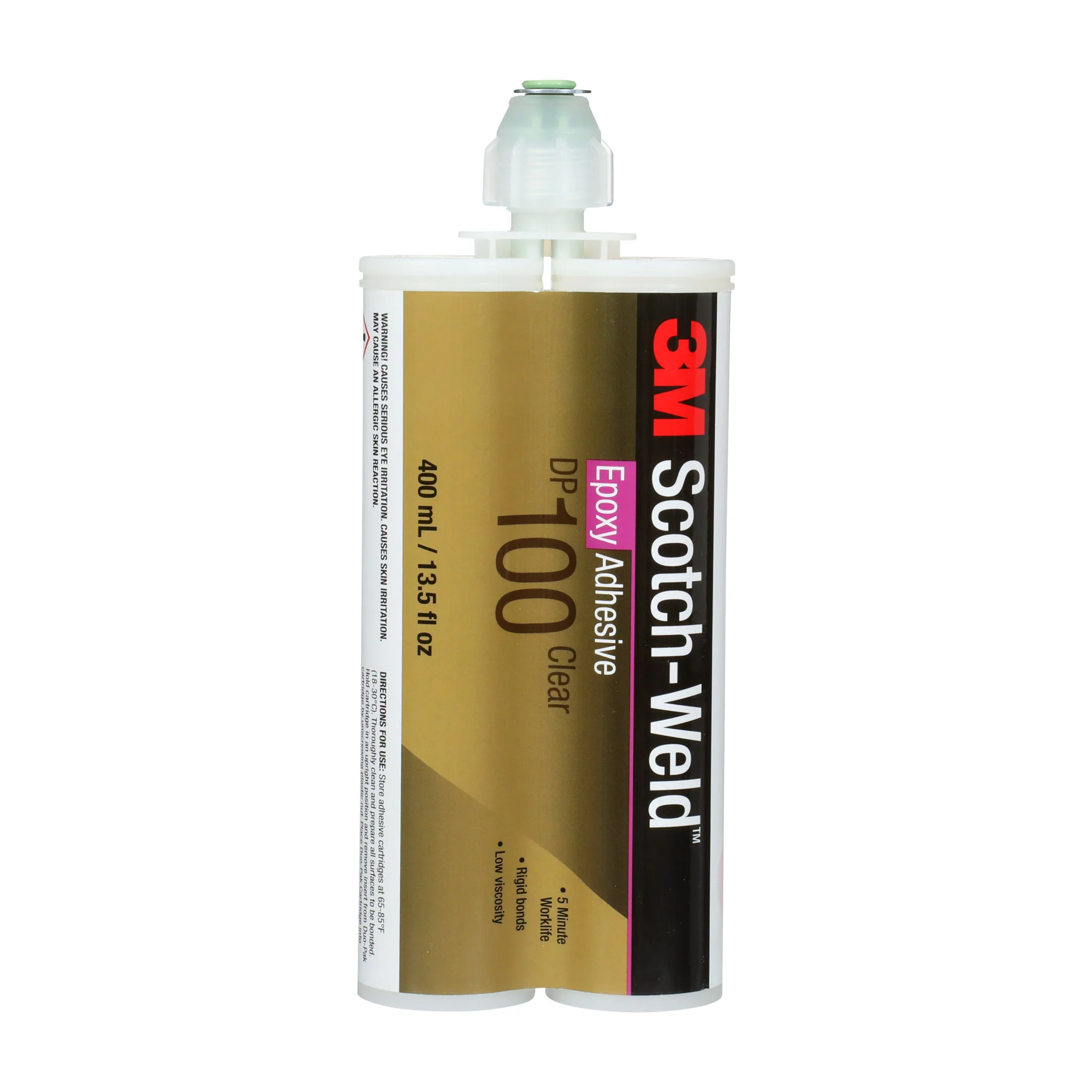

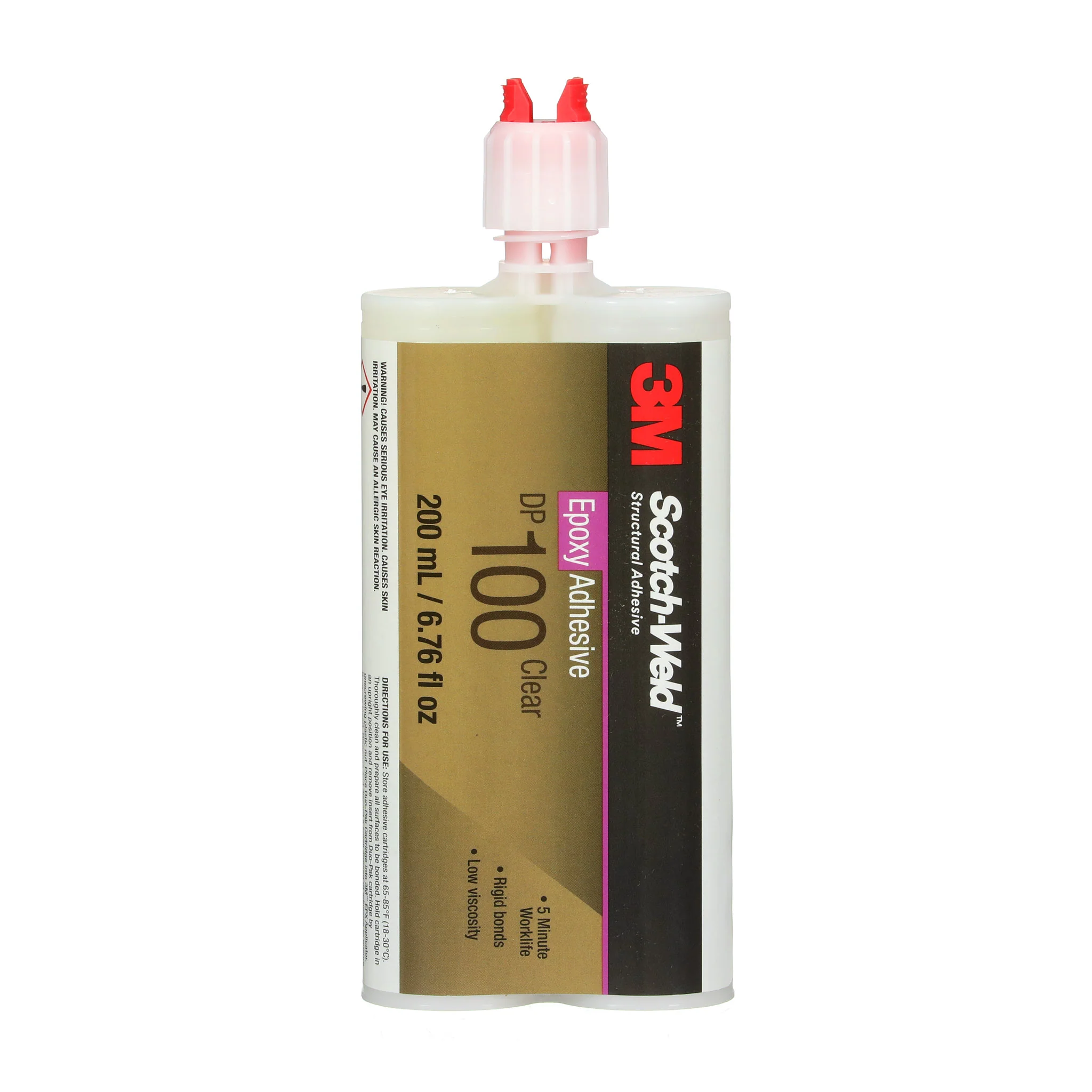

• Available Sizes: 50 mL, 200 mL, and 400 mL Cartridges

• Mix Ratio by Volume (B:A): 1:1

• Shore D Hardness (ASTM D2240): 82

• Open Time: 5 Minutes

• Set Time: 15 to 20 Minutes

• Work Life: 5 Minutes

• Full Cure Time: 48 Hours

• Shear Strength: 1,500 psi

• Compression Strength: 8,400 lb/in²

• Storage Temperature: 60°F to 80°F (16°C to 27°C)

• Certifications: UL 94 HB Certified


Note: All results are based on testing at 72°F (22°C), unless stated otherwise.

Applications

3m Scotch Weld Epoxy Adhesive DP100 is ideal for bonding applications in the transportation, industrial, and construction industries. Common uses include attaching various substrates such as wood, metal, glass, stone, ceramics, and plastics, general-purpose bonding, and applications requiring transparent bond lines.
