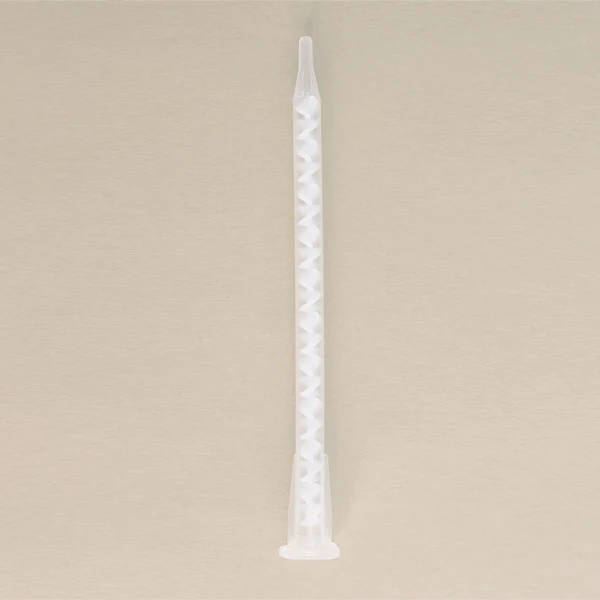

Infinity Bond 190-620 Static Mixer Nozzle with Slip Luer
Infinity Bond 190-620 Static Mixing Nozzle with Bayonet and Slip Luer for 50 mL Cartridges
The Infinity Bond 190-620 is a compact, high-efficiency static mixing nozzle built for 50 ml adhesive cartridges using 1:1 and 2:1 ratios. Featuring 20 internal spiral elements and a slip luer tip, this nozzle ensures consistent two-part adhesive blending and precise flow control. It includes a secure bayonet-style connection and measures 5.85 in (148.6 mm) in length to minimize waste without sacrificing performance. Compatible with popular chemistries such as epoxies, polyurethanes, silicones, and methyl methacrylates (MMA), the 190-620 is proudly made in the USA and offers reliable results in standard 50 ml systems. It is also comparable to top models like the Nordson™ 77071487 (TAH 190-620) and Sulzer™ MAH 06-21L for performance and quality.
Key Features of the Infinity Bond 190-620 Mixing Nozzle
- Slip Luer Outlet Tip: Enables clean, accurate dispensing and easy attachment to standard needles or accessories.
- Spiral Mixing Performance: 20 internal elements provide consistent, thorough blending of two-part adhesives.
- Bayonet Cartridge Connection: Fast, secure twist-lock attachment to 50 mL cartridges for efficient setup.
- Compact and Disposable: 5.85-inch length minimizes waste while supporting high-performance, single-use applications.
- Versatile Material Compatibility: Ideal for dispensing epoxies, polyurethanes, silicones, and methyl methacrylates (MMA).
190-620 Mixing Tip Specifications
- Part Number: 190-620
- Mixer Type: Spiral
- Connection Type: Bayonet
- Outlet Tip: Slip Luer
- Compatible Cartridge Sizes: 50 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 20
- Inner Diameter: 0.250 in / 6.35 mm
- Outer Diameter: 0.335 in / 8.51 mm
- Length: 5.85 in / 148.6 mm
- Outlet Orifice Diameter: 0.060 in / 1.52 mm
- Approx. Retained Volume: 3.0 ml
- Housing Material: Polypropylene
- Element Material: Polyacetal
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More
Comparable Adhesive Mixing Nozzles
- Nordson 7701487 (TAH 190-620)
- Sulzer MAH 06-21L
- Loctite 983509
- Loctite 98454
- Loctite 98622
- McMaster 74695A59
- AP Plastics MA 6.3-21-S
