Infinity Bond MBH 05-16T Static Mixers for 50 ml B and S System Cartridges

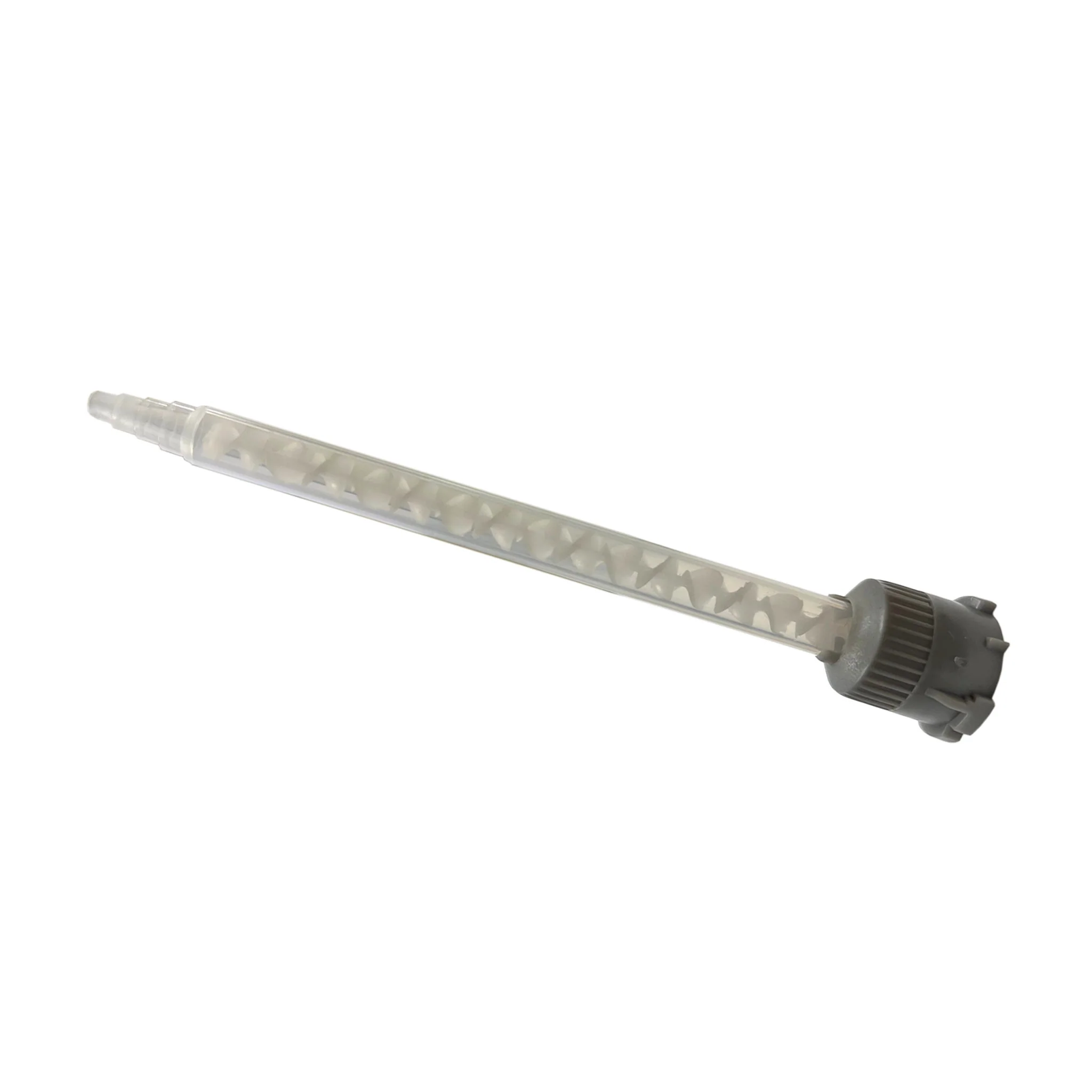

The Infinity Bond MBH 05-16T static mixing nozzle features a compact 4.402 in (112 mm) helix design with 16 internal elements and a 0.213 in (5.4 mm) inner diameter. It includes a stepped tip for adjustable adhesive bead size and is engineered for use with 50 ml dual cartridges in the B-System and S-System, supporting 1:1 and 2:1 ratios. Ideal for MMAs, epoxies, polyurethanes, and silicones, this disposable mixer uses a twist-and-lock connection for fast setup and clean changeouts. This model is a compatible alternative to Sulzer MBH 05-16T mixing nozzles.

MBH 05-16T Static Mixing Nozzle Features and Benefits

• Compact Helix Mixing Design: 16 internal elements provide consistent blending of two-part adhesives in a short overall length.
• Stepped Tip for Adjustable Flow: Trim the nozzle to control bead size and accommodate various application needs.
• Twist-and-Lock Cartridge Fit: Quickly connects to 50 ml cartridges in B-System and S-System formats without tools.
• Supports Standard Mix Ratios: Compatible with both 1:1 and 2:1 adhesives for versatility across chemistries.
• Disposable Construction for Clean Changeouts: Reduces downtime and eliminates cross-contamination between uses.

MBH 05-16T Static Mixer Specifications

• Part Number: MBH 05-16T
• Mixer Type: Helix
• Connection Type: Twist and Lock
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 50 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 16
• Inner Diameter: 0.213 in / 5.4 mm
• Length: 4.402 in / 112 mm
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MBH 05-16T Mixing Nozzles

• Sulzer MBH 05-16T
