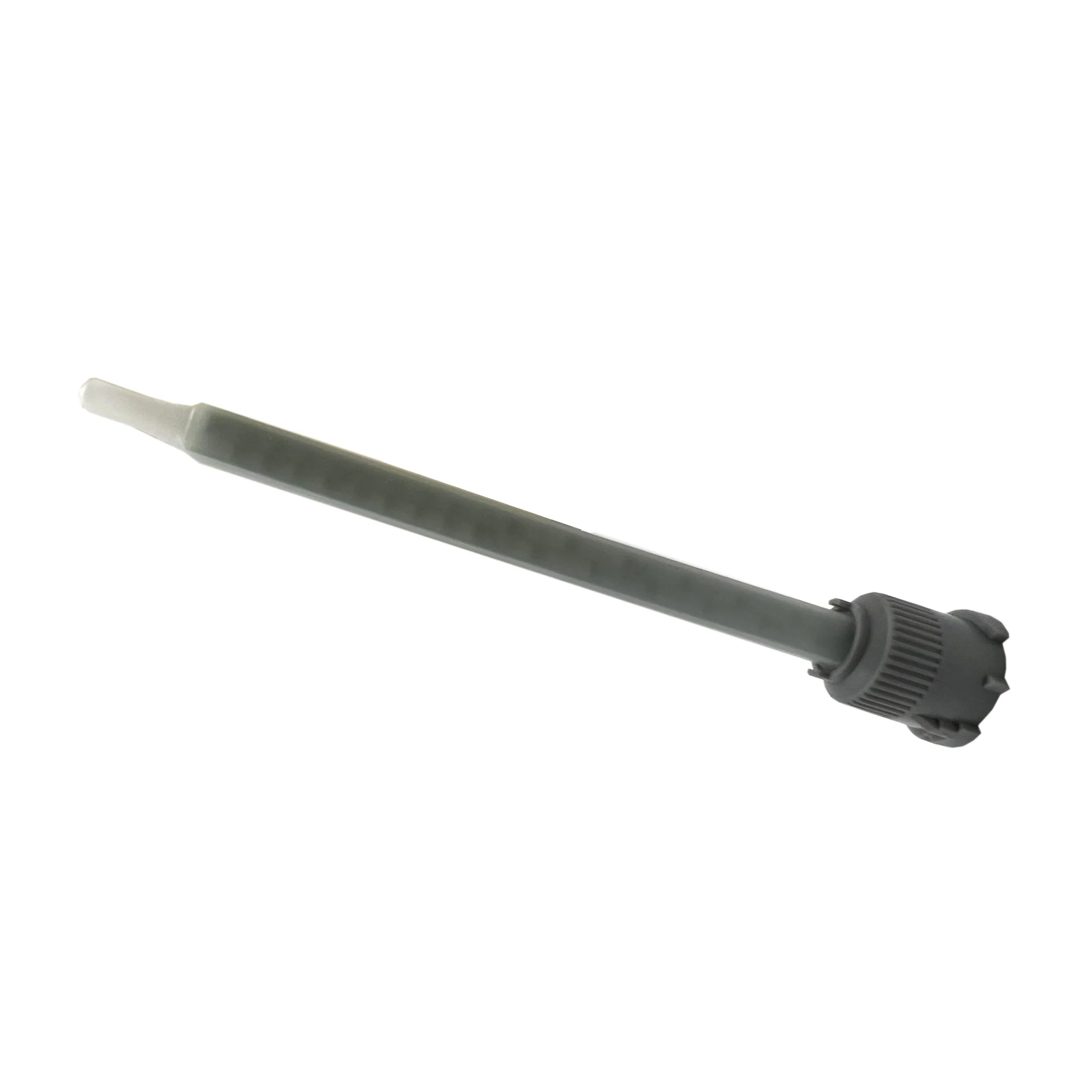

Infinity Bond MBQ 05-24L Quadro Static Mixing Nozzle with Luer Slip Tip

The Infinity Bond MBQ 05-24L static mixing nozzle features a compact Quadro design that enables thorough blending in a shorter overall length. It includes a Luer Slip Tip outlet for compatibility with a wide range of dispensing needles and accessories, allowing for precise application. Designed for use with 1:1 and 2:1 adhesive systems, this nozzle supports MMAs, epoxies, polyurethanes, and silicones. The MBQ 05-24L is a compatible alternative to the Sulzer MBQ 05-24L static mixer nozzle.

Why Choose the MBQ 05-24L Adhesive Mixing Tip

• Quadro Mixing Efficiency: The square 24 element design enhances blending performance while reducing overall nozzle length.
• Compact Profile: Shorter nozzle design allows users to work closer to substrates for improved control and visibility.
• Luer Slip Tip Outlet: Enables use with a variety of needles and accessories for precise adhesive application.
• Supports 1:1 and 2:1 Adhesives: Compatible with common two-part chemistries like epoxies, MMAs, silicones, and polyurethanes.
• Twist-and-Lock Connection: Provides a secure fit to dual cartridges for consistent, leak-free dispensing.

Specifications

• Part Number: MBQ 05-24L
• Mixer Type: Quadro
• Connection Type: Twist and Lock
• Outlet Tip: Luer Slip
• Compatible Cartridge Sizes: 25, 50, 75 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 24
• Inner Diameter: ~0.209 in / 5.3 mm
• Outer Diameter: ~0.287 in / 7.3 mm
• Length: ~4.803 in / 122 mm
• Outlet Orifice Diameter: ~0.041 in / 1.05 mm
• Approx. Retained Volume: ~2.60 ml
• Housing Material: Polypropylene
• Element Material: Acetalcopolymere
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MBQ 05-24L Mixer Tips

• Sulzer MBQ 05-24L
