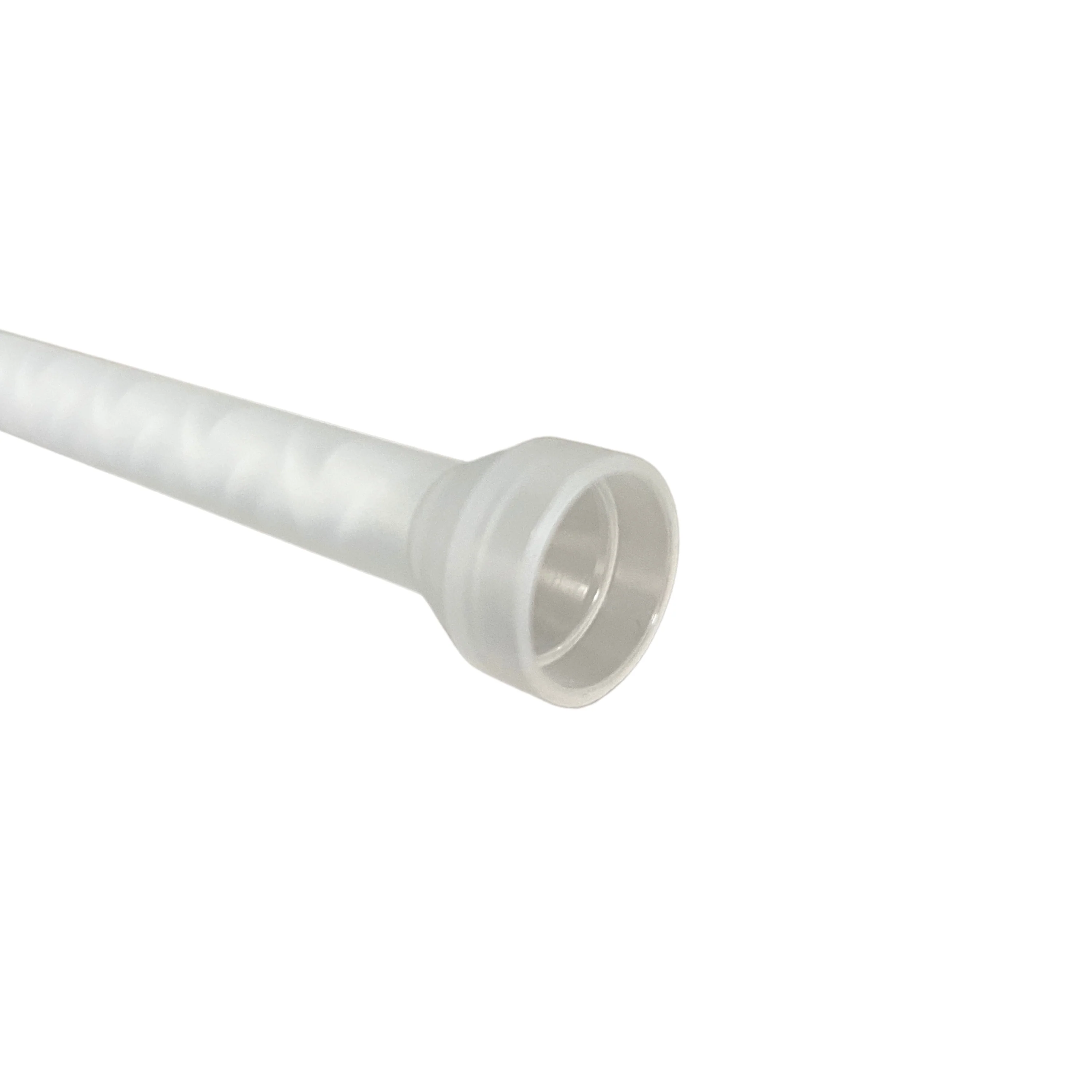

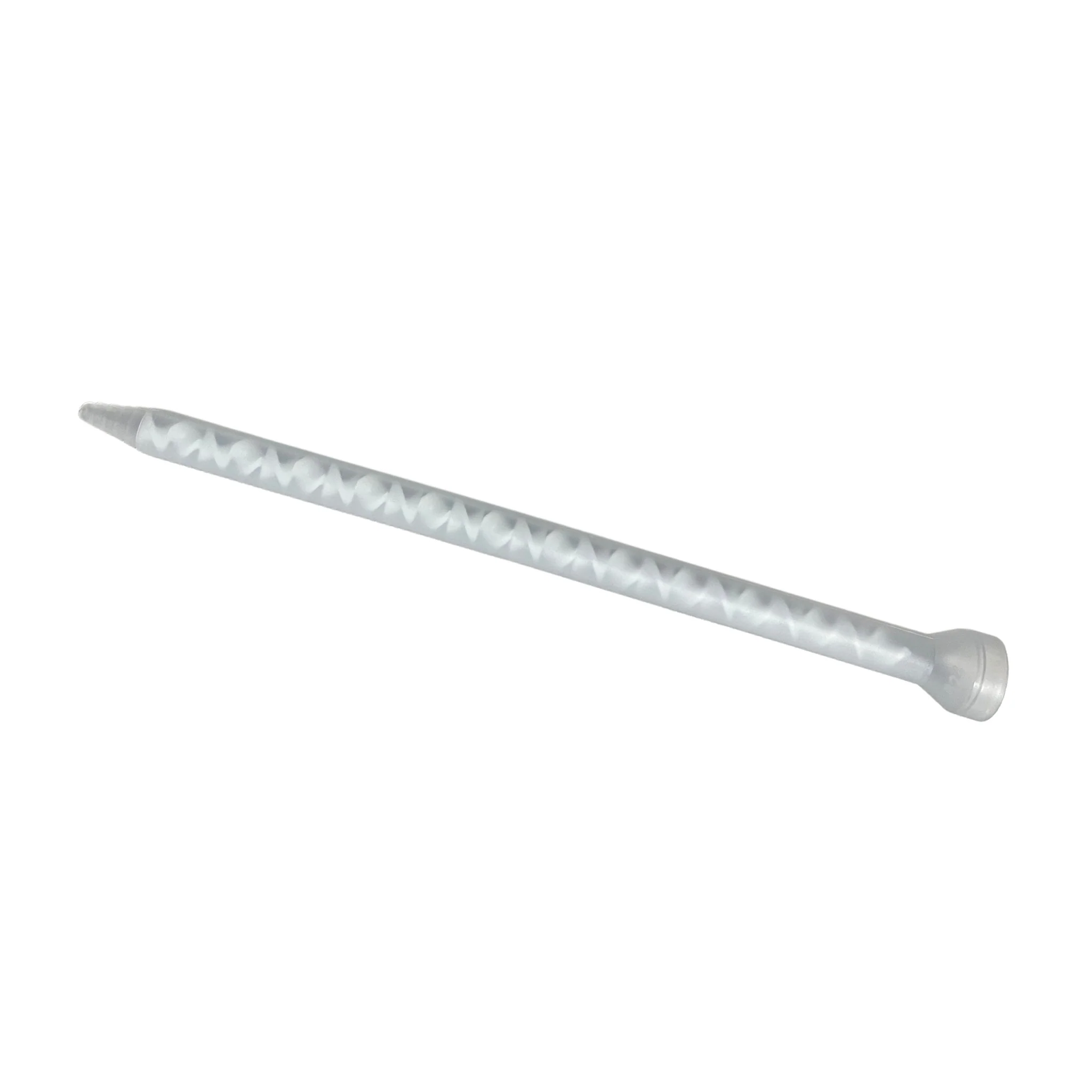

Infinity Bond MCH 08-24T Static Mixing Nozzle for C-System Cartridges

The Infinity Bond MCH 08-24T is a high-performance static mixing nozzle designed for use with 1:1 and 2:1 adhesives in 200 ml, 400 ml, and 600 ml cartridges. It features a helical mixer with 24 elements and a stepped tip outlet, allowing users to trim the nozzle for customized bead size. With an inner diameter of 0.315 in (8.0 mm) and a length of 8.82 in (224 mm), this mixer ensures consistent blending of two-part materials such as MMAs, epoxies, polyurethanes, and silicones. It is compatible with standard C-System cartridges and Meter Mix Dispense (MMD) equipment. Commonly used to replace the Sulzer MCH 08-24T.

MCH 08-24T Static Mixer Nozzle Key Features

• Precision Helical Mixing: 24 elements ensure uniform blending of two-component adhesives and sealants.

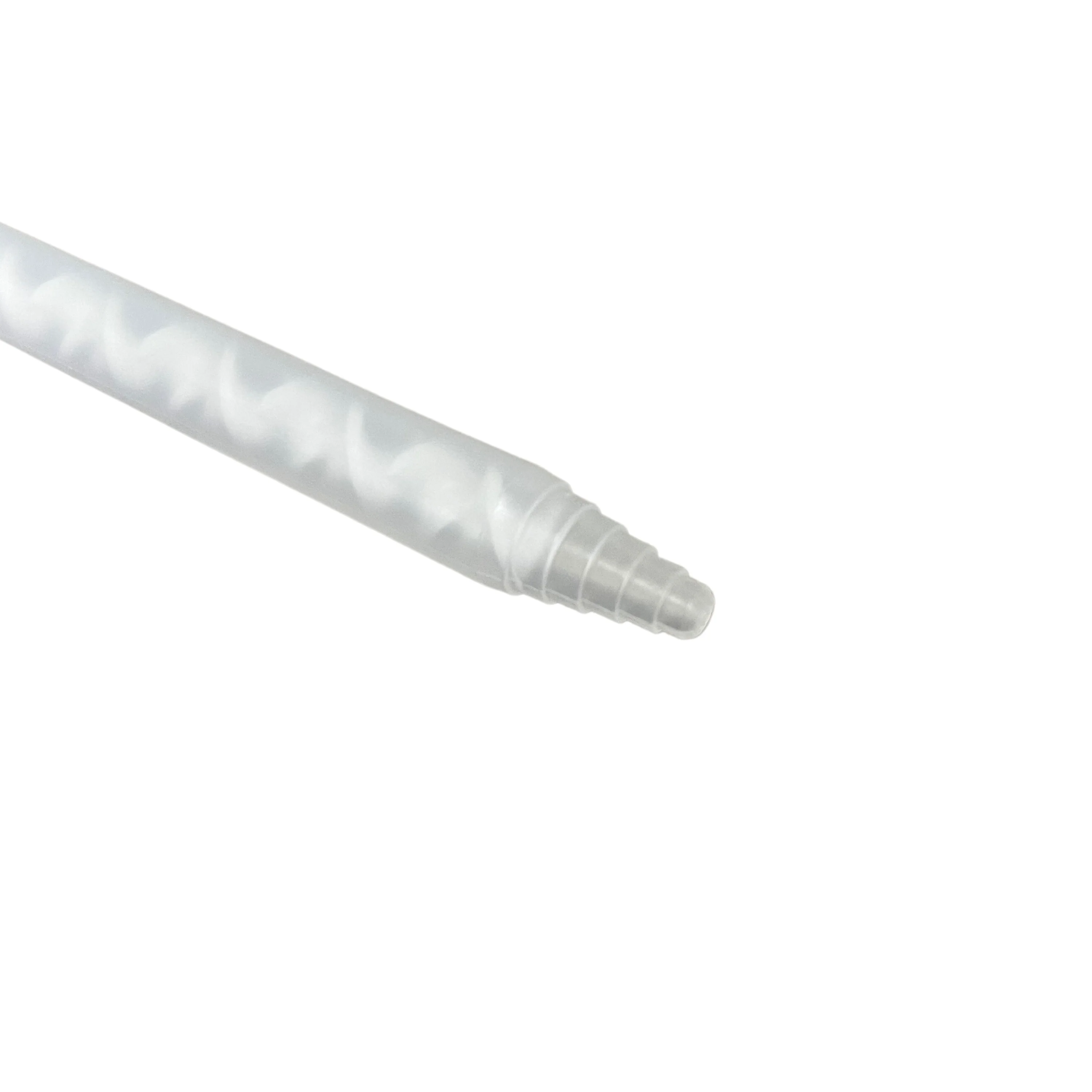

• Stepped Tip Outlet: Enables users to cut the nozzle for flexible control over bead size.

• C-System Compatibility: Connects easily with standard 200 ml, 400 ml, and 600 ml adhesive cartridges.

• Reliable Material Construction: Made of durable material for consistent chemical resistance and stability.

• Supports High-Performance Applications: Ideal for MMAs, polyurethanes, epoxies, and silicones.

Specifications

• Part Number: MCH 08-24T

• Mixer Type: Helix

• Connection Type: Bell (C-System)

• Outlet Tip: Stepped

• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml

• Mix Ratios: 1:1 and 2:1

• Number of Elements: 24

• Inner Diameter: 0.315 in / 8.0 mm

• Length: 8.82 in / 224 mm

• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment

• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Comparable To Other Static Mixing Nozzles

• Sulzer MCH 08-24T
