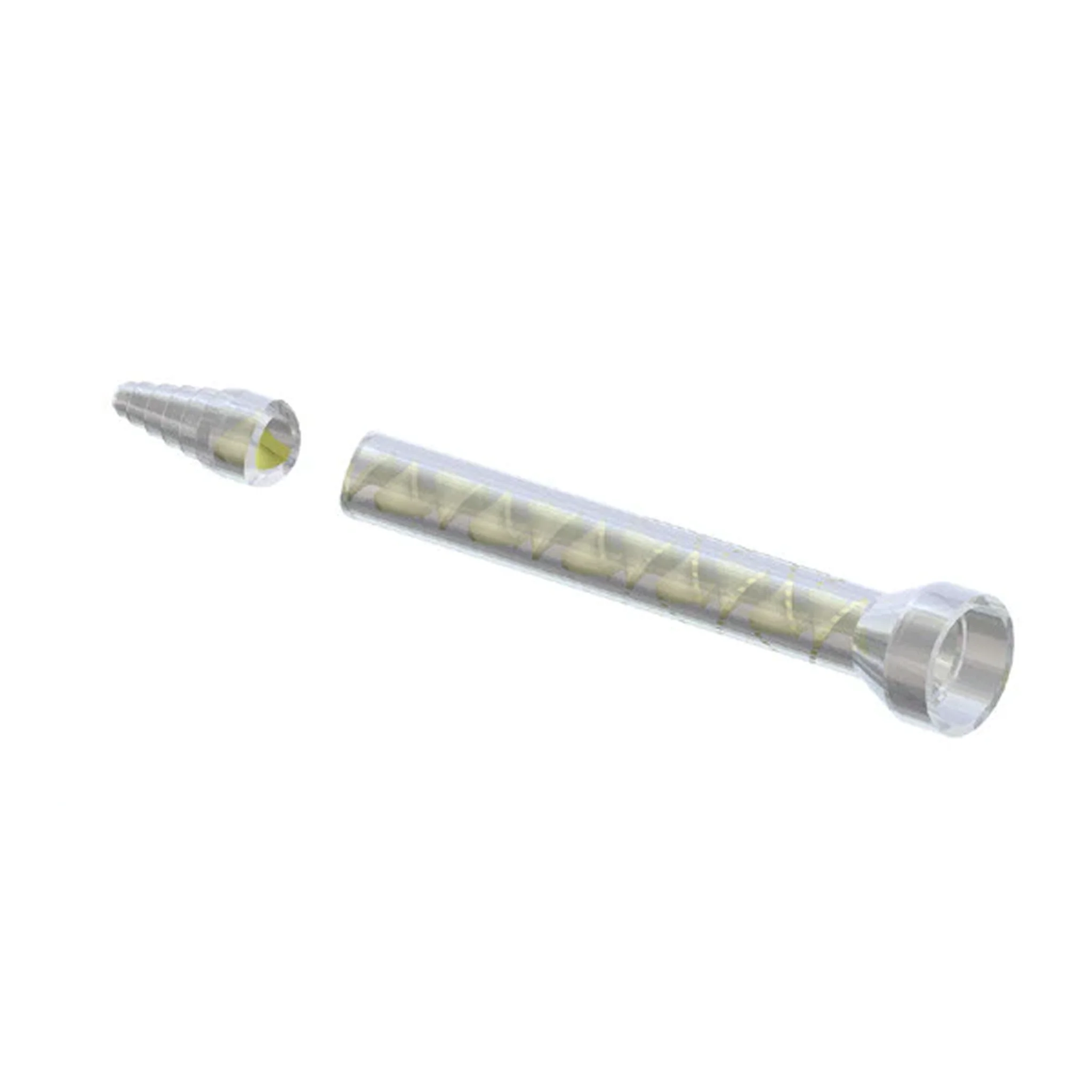

Infinity Bond MS 06-24T Static Mixer Nozzle for Two-Part Adhesives

The Infinity Bond MS 06-24T static mixer features a helix design with 24 elements, a 0.250 in (6.35 mm) inner diameter, and a 7.32 in (186 mm) overall length. It connects via a standard bell interface to C-System cartridges and supports 1:1 and 2:1 mix ratios for use with MMAs, epoxies, silicones, and polyurethanes. This nozzle is also compatible with meter mix dispense (MMD) equipment, making it ideal for both manual and automated applications. A stepped tip enables adjustable bead size by trimming the outlet. This model is a compatible alternative to the Sulzer MS 06-24T.

Key Features of MS 06-24T Machine Mixer Nozzle

• High-Element Helix Design: 24 internal mixing elements ensure complete and consistent blending of two-part adhesive chemistries.
• Secure Bell Connection: Designed for use with C-System cartridges, offering quick and reliable installation during dispensing.
• Adjustable Stepped Tip: Stepped outlet can be cut to create a custom bead size for greater application control.
• Ideal for High-Pressure Dispensing: Long length and robust helix design support smooth flow of viscous materials under pressure.
• Versatile Application Range: Compatible with adhesives mixed at 1:1 and 2:1 ratios in manual, pneumatic, or meter mix dispense (MMD) systems.

MS 06-24T Product Specifications

• Part Number: MS 06-24T
• Mixer Type: Helix
• Connection Type: Bell (C-System)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 24
• Inner Diameter: 0.250 in / 6.35 mm
• Outer Diameter: 0.394 in / 10.00 mm
• Length: 7.32 in / 186 mm
• Outlet Orifice Diameter: 0.071 in / 1.80 mm
• Approx. Retained Volume: 4.2 ml
• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Replacement for MS 06-24T Static Mixer Nozzles

• Sulzer MS 06-24T
