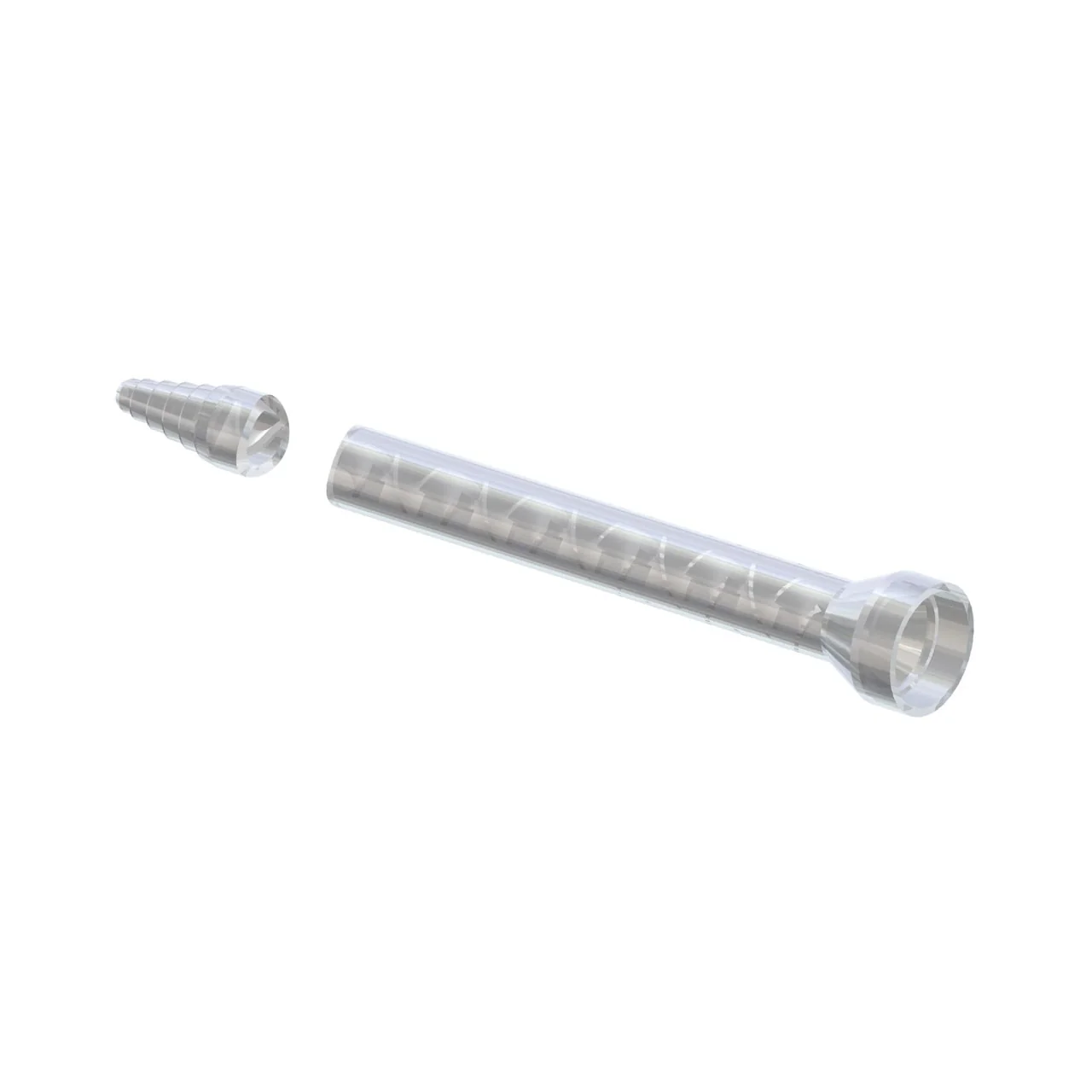

Sulzer MCH 13-24T Static Mixing Nozzle - Helix, 1:1/2:1, Bell Connection

The Sulzer MCH 13-24T static mixing nozzle features a Helix mixer type and a Bell connection, designed for use with the MIXPAC™ C System. This nozzle is compatible with 1:1 and 2:1 mix ratios and fits 200/400 ml cartridges. With 24 elements, it provides superior mixing efficiency, boasting an inner diameter of 0.512 in (13.0 mm) and a length of 11.575 in (294 mm). The stepped tip outlet ensures precise dispensing, while the clear polypropylene construction allows for easy monitoring of material flow. Ideal for a range of adhesive chemistries including epoxies and polyurethanes, this static mixing nozzle is a reliable choice for your mixing needs.

MCH 13-24T Features and Benefits

• Efficient Helix Design: Provides thorough and consistent mixing for a variety of adhesive applications, ensuring optimal performance of static mixing nozzles.
• Compatible with MIXPAC™ C System: Seamlessly integrates with 200/400 ml cartridges, simplifying the setup process for users.
• Stepped Tip Outlet: Guarantees precise and controlled dispensing, minimizing waste and enhancing application accuracy.
• Optimal Dimensions: Features an inner diameter of 0.512 in (13.0 mm) and a length of 11.575 in (294 mm), designed for effective flow and mixing.
• Versatile Compatibility: Works well with 1:1 and 2:1 mix ratios and is suitable for various adhesive chemistries, including MMAs and epoxies.

Sulzer MCH 13-24T Specifications

• Series: MCH
• Model: MCH 13-24T
• Mixer Type: Helix
• Connection Type: Bell
• System: MIXPAC™ C System
• Compatible With: 1:1/2:1 200/400 ml Cartridges
• Number of Elements: 24
• Inner Diameter: 0.512 in / 13.0 mm
• Length: 11.575 in / 294 mm
• Waste Volume: 27.30 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 800
